1KV XLPE Insulated Cable

Applications：

1kV XLPE insulated cables are commonly used for power distribution and transmission in various applications, including buildings, industrial sites, and utility grids. They are also good for tough places like petrochemical plants and offshore platforms. They can handle high temperatures and stress.

1KV XLPE Insulated Cable Types

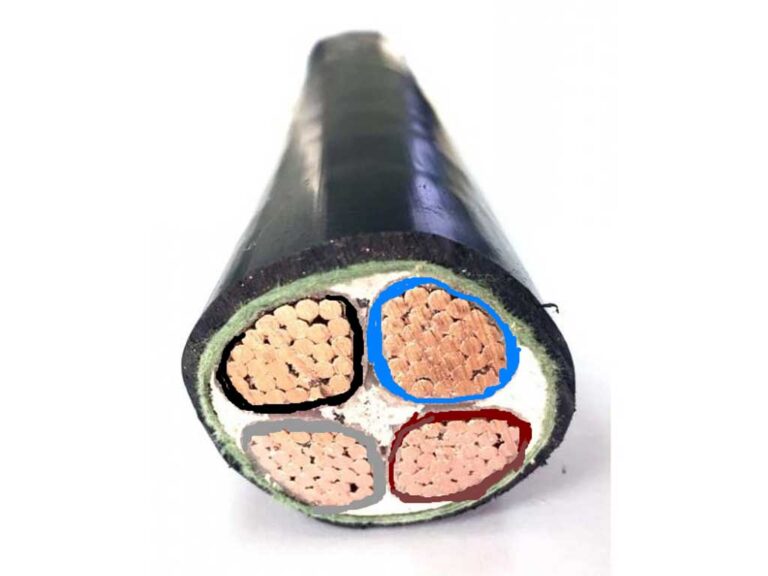

Copper Unarmored 1KV XLPE Insulated Cable

Rated Voltage: 0.6/1KV

CU/XLPE/PVC

Singe core or multi core copper conductor XLPE insulation PVC sheath power cable for power distribution and supply.

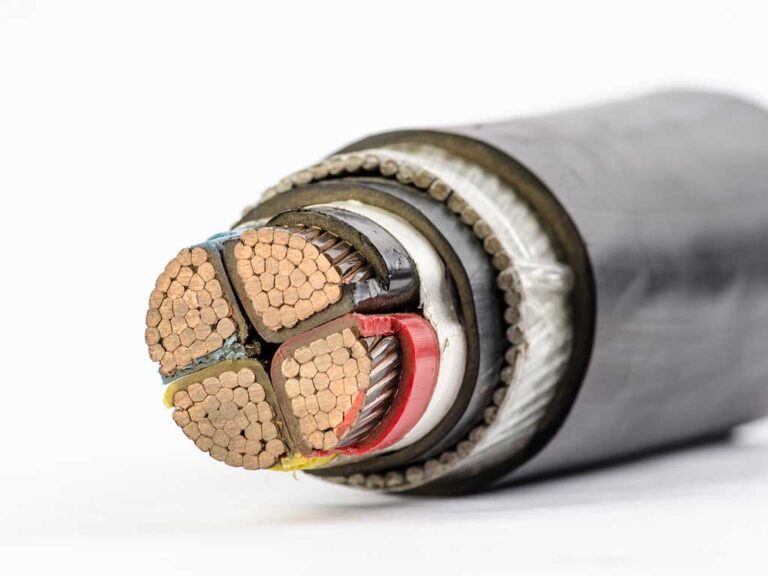

Copper Armored 1KV XLPE Insulated Cable

Rated Voltage: 0.6/1KV

CU/XLPE/PVC /SWA/PVC (Multi Core)

CU/XLPE/PVC /AWA/PVC (Singe Core)

singe core or multi core copper conductor XLPE insulation PVC inner steel wire armor (aluminum wire armor) PVC Outer sheath power cable for power distribution and supply.

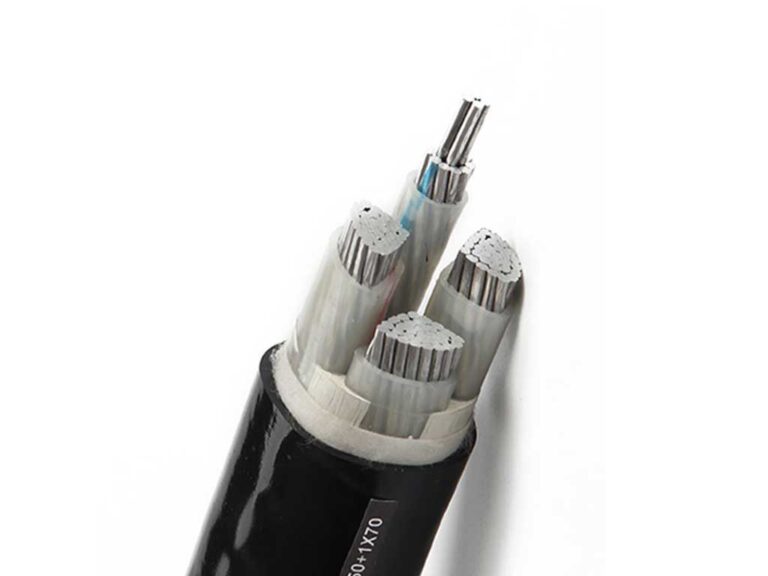

Aluminum unarmored 1KV XLPE Insulated Cable

Rated Voltage: 0.6/1KV

AL/XLPE/PVC

singe core or multi core aluminum conductor XLPE insulation PVC sheath power cable for power distribution and supply.

Aluminum Armored 1KV XLPE Insulated Cable

Rated Voltage: 0.6/1KV

AL/XLPE/PVC /SWA/PVC (Multi Core)

AL/XLPE/PVC /AWA/PVC (Singe Core)

singe core or multi core aluminum conductor XLPE insulation PVC inner steel wire armor (aluminum wire armor) PVC Outer sheath power cable for power distribution and supply.

Characteristics:

Voltage Rating: Designed for 0.6/1 kV (1.2 kV) systems.

Insulation Material: XLPE (Cross-linked Polyethylene) provides superior insulation compared to other materials like PVC.

Conductor Temperature: Can handle continuous temperatures up to 90°C. It can also manage emergency and short-circuit limits of 130°C and 250°C.

Environmental Resistance: Offers excellent resistance to heat, stress, chemicals, and moisture.

Mechanical Properties: Good flexibility, resistance to abrasion, and bending.

Ease of Installation: Simpler to install and splice compared to other types of cables.

Construction: Available in single, two, three, four, and five-core options. You can choose solid or stranded conductors, and armor made of steel wire or tape.

Standards: Designed and manufactured according to standards like IEC 60502-1.

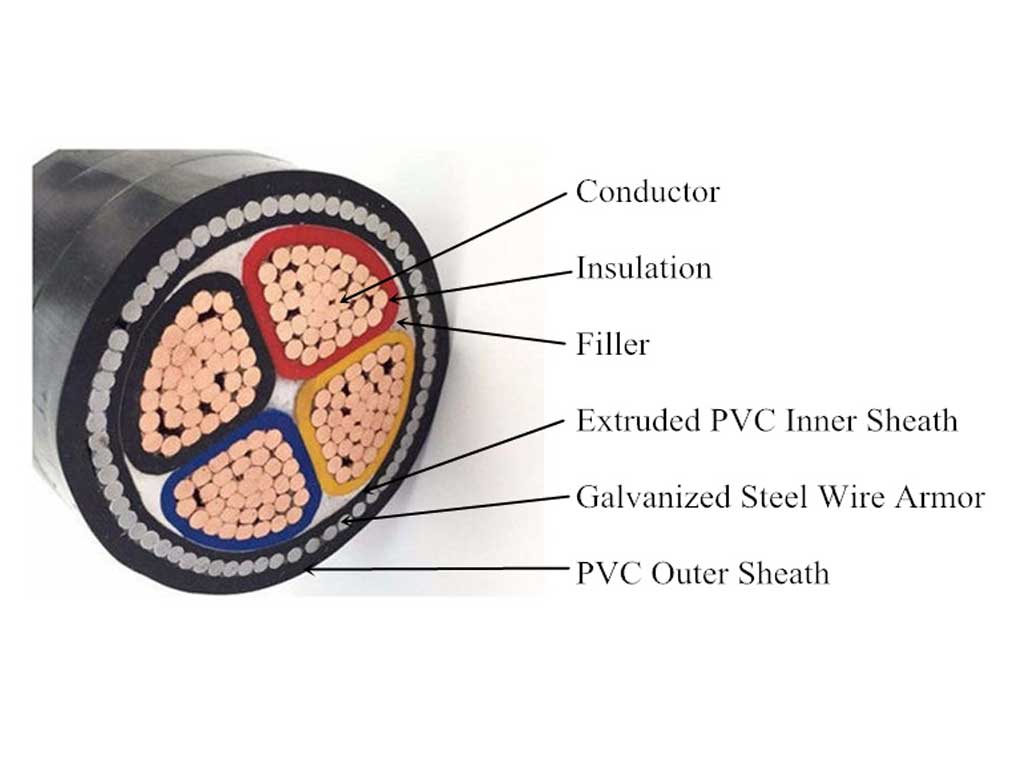

Construction:

Conductor:

Material: Copper or aluminum.
Shape: Can be circular solid, compacted, or sector-shaped stranded.
Class: Follows standards like IEC 60228 for conductors.

Insulation:

Material: XLPE (cross-linked polyethylene).
Purpose: Provides electrical insulation and helps to withstand temperature variations and environmental conditions.

Binder Tape:

Material: Non-hygroscopic material.
Purpose: Helps to maintain the shape and integrity of the cable core and to prevent water or moisture from penetrating.

Inner Sheath (Bedding):

Material: Extruded PVC.
Purpose: Provides additional protection and reinforcement, often used in armoured cables.

Armor (Optional):

Material: Galvanized steel wires or steel tape.
Purpose: Protects the cable from mechanical damage during installation and operation.

Outer Sheath:

Material: PVC (Polyvinyl Chloride) or PE (Polyethylene).
Purpose: Provides overall protection against environmental factors, moisture, and UV radiation.
Type: Can be specific types of PVC, like fire-retardant or anti-rodent PVC, depending on the application.

Fillers (Optional):

Material: Non-hygroscopic material.
Purpose: Used to fill spaces between the insulated conductors, especially in multi-core cables.

Standards:

The construction of 1kV XLPE insulated cables often adheres to standards like IEC 60228 for conductors and IEC 60502-1 for power cables with extruded insulation.
