AL/XLPE/PVC/SWA/PVC 0.6/1kV Multicore armored cable
Applications：
AL/XLPE/PVC/SWA/PVC 0.6/1kV Multicore armored cables are to be used for main power supply such as in low voltage distribution power network. Our AL/XLPE/PVC/SWA/PVC 0.6/1kV Multicore armored cables can be for indoor and outdoor areas. They can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.

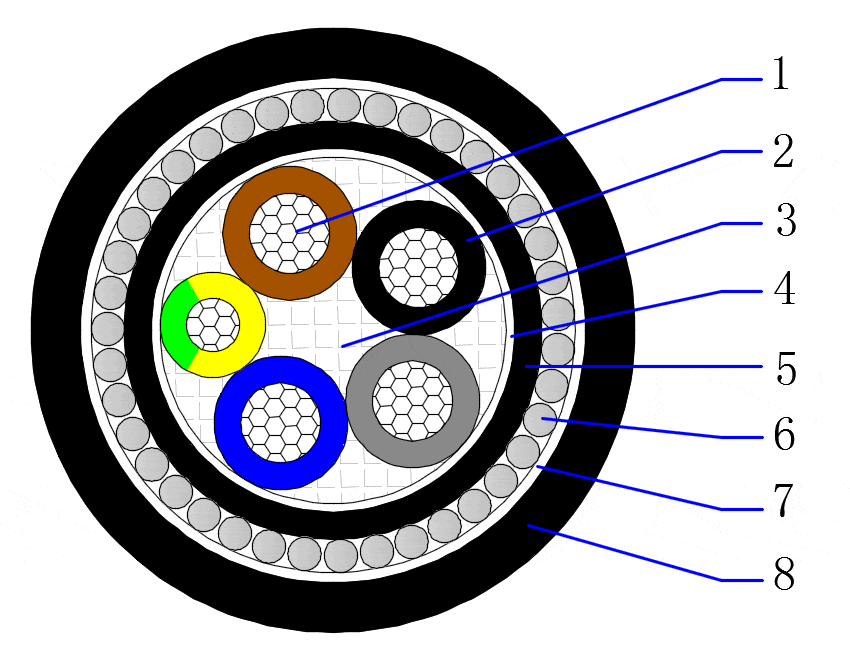

Cable Construction
- Conductor – Class 2 stranded (compacted) aluminum
- Insulation – Cross linked polyethylene (XLPE)
- Filler – Non-hygroscopic material
- Binder tape – Non-hygroscopic material tape
- Inner sheath – Polyvinyl chloride compound (PVC)
- Armor – Galvanized steel wires
- Binder tape – Non-hygroscopic material tape
- Outer sheath – Polyvinyl chloride compound (PVC)
Standard:
Cable design: IEC 60502-1 or AS/ZNS 5000.1
Conductor: IEC 60228 or AS/ZNS 1125
Conductor size range：
2C10~2C400mm2
3C10~3C400mm2
4C10~4C400mm2
5C10~5C400mm2
2C+E16~2C+E400mm2
3C+E16~3C+E400mm2
4C+E16~4C+E400mm2
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
1-Core: Brown, or Natural, or Black
2-Core: Brown, Blue
3-Core: Brown, Black, Grey
2-Core + 1 Reduced Earth: Brown, Blue, Green/Yellow
4-Core: Brown, Black, Grey, Blue
3-Core +1 Reduced Earth: Brown, Black, Grey, Green/Yellow
5-Core: Brown, Black, Grey, Blue, Green/Yellow
4-Core+ 1 Earth: Brown, Black, Grey, Blue, Green/Yellow
3-Core + 1 Reduced Neutral + 1 Reduced Earth: Brown, Black, Grey, Blue, Green/Yellow
Other color code can be available on request. Outer sheath: Black or according to customer requirements
