AL/XLPE/PVC 0.6/1kV Multicore unarmored cable

Applications：

AL/XLPE/PVC 0.6/1kV Multicore unarmored cable to be used for main power supply such as in low voltage distribution power network. Our AL/XLPE/PVC 0.6/1kV Multicore unarmored cable with aluminum conductor can be for indoor and outdoor areas. They can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.

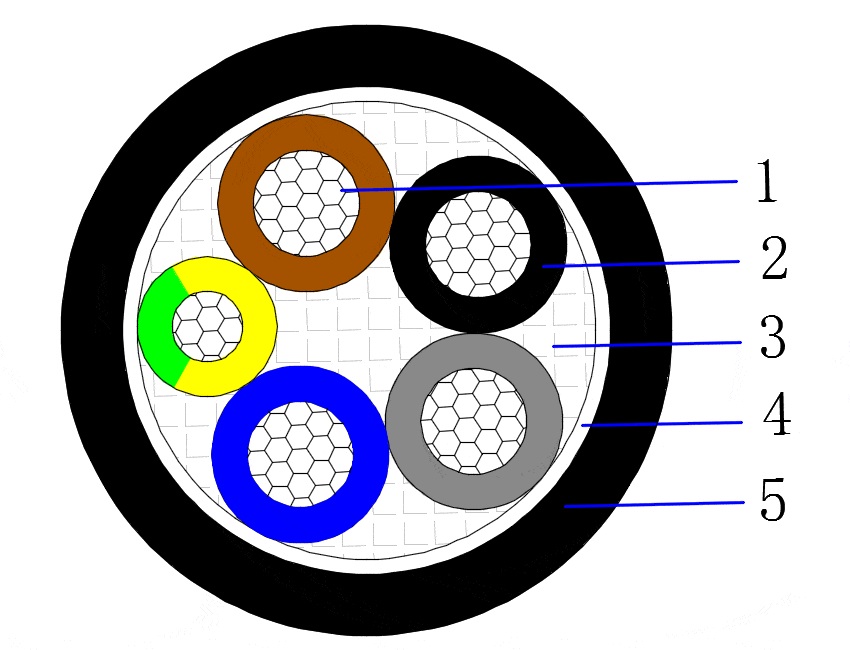

Cable Construction

Conductor – Class 2 stranded (compacted) aluminum
Insulation – Cross linked polyethylene (XLPE)
Outer sheath – Polyvinyl chloride compound (PVC)

Standard:

Cable design: IEC 60502-1 or AS/ZNS 5000.1

Conductor: IEC 60228 or AS/ZNS 1125

Conductor size range：

2C10~2C400mm2
3C10~3C400mm2
4C10~4C400mm2
5C10~5C400mm2
2C+E16~2C+E400mm2
3C+E16~3C+E400mm2
4C+E16~4C+E400mm2

H2 Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min

Temperature characteristics:

Conductor operating temperature: -15℃~90℃
Min. temperatrue laying condition: 0℃
Conductor emergency operating temperature: 105℃
Conductor short-circuit operating temperature (5s): 250℃

Color:

1-Core: Brown, or Natural, or Black
2-Core: Brown, Blue
3-Core: Brown, Black, Grey
2-Core + 1 Reduced Earth: Brown, Blue, Green/Yellow
4-Core: Brown, Black, Grey, Blue
3-Core +1 Reduced Earth: Brown, Black, Grey, Green/Yellow
5-Core: Brown, Black, Grey, Blue, Green/Yellow
4-Core+ 1 Earth: Brown, Black, Grey, Blue, Green/Yellow
3-Core + 1 Reduced Neutral + 1 Reduced Earth: Brown, Black, Grey, Blue, Green/Yellow
Other color code can be available on request. Outer sheath: Black or according to customer requirements
