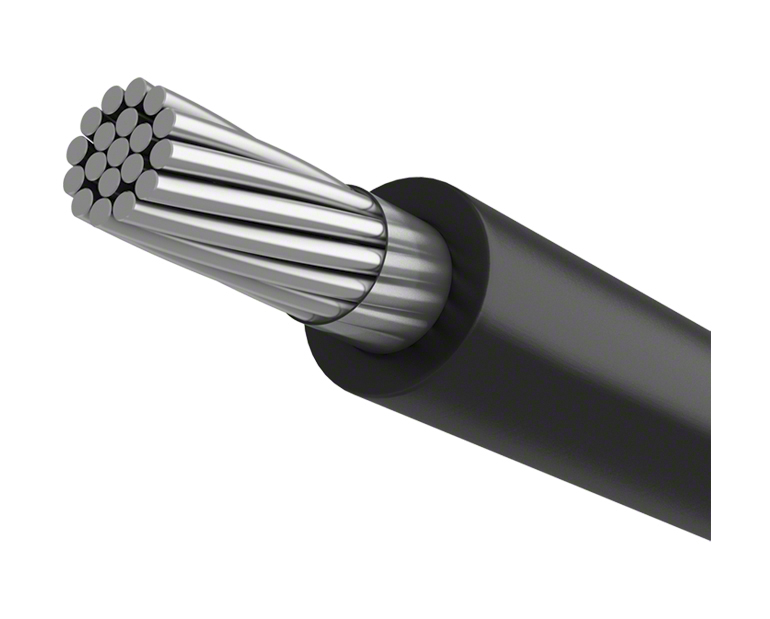

MV Aerial Insulated Cable-Single Core
APPLICATION：
Used for aerial fixed laying primary power distribution, medium-voltage networks located in urban and wooded areas. when installing the cables, to keep a distance between the cable and trees shall be considered. During operating, the cables and the trees shall be allowed to touch each other frequently.
STANDARD：
Basic design to GB/T 14049, IEC60502-2, GB/T 12706, or other standards on request
CONSTRUCTION：
Conductor: Copper, or Aluminum, or ACSR
Conductor screen(optional): semi-conducting compound
Insulation: XLPE or HDPE, UV resistant
Outer sheath(optional): HDPE, UV resistant
MV Aerial Insulated Cable-Single Core
NUMBER OF CORES AND RANGE OF SIZE:
Single core：Copper 25mm2～400mm2;
Aluminum 25mm2 ～400mm2
CORE IDENTIFICATION：
Single core without outer sheath: black
XLPE Single core with outer sheath: natural
OUTER SHEATH COLOUR: Black
