Solar cables
Applications：
Our solar cables are intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems.
Characteristics:
Voltage Rating
Uo/U AC: 1000/1000V
DC: 1500/1500V Maximum Voltage (Umax) 1800V
Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)

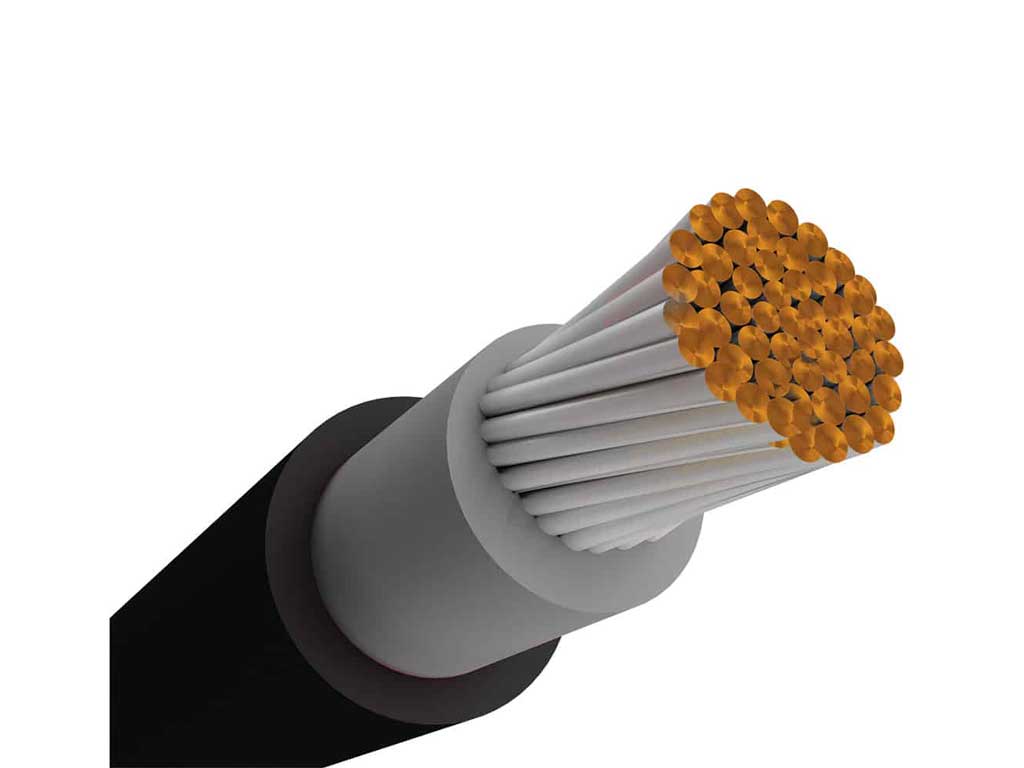

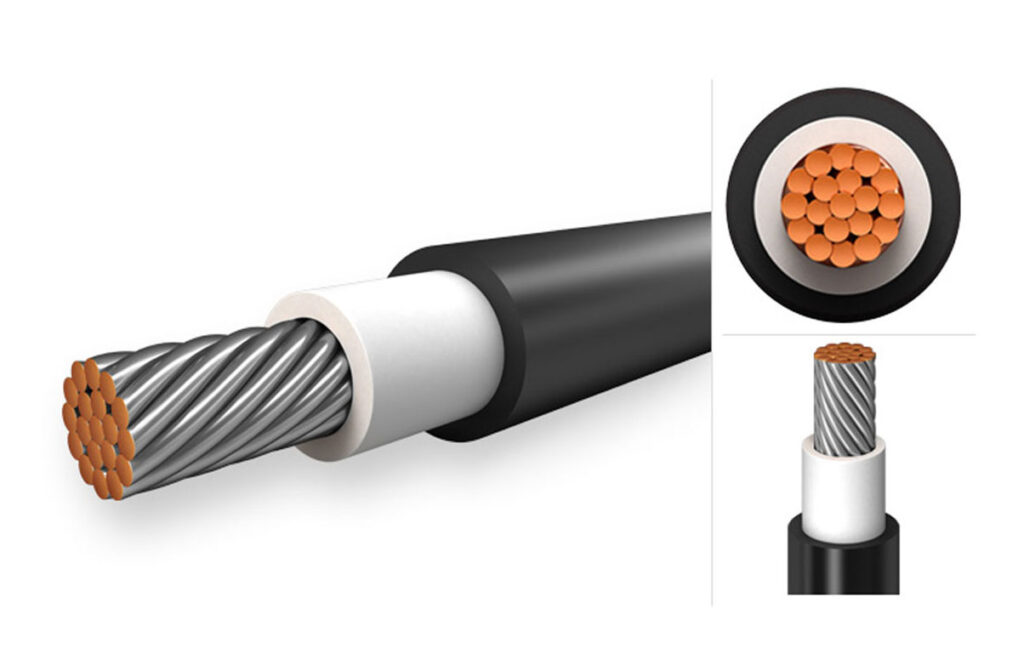

Construction:
Conductor Class 5 flexible tinned copper conductor
Insulation Halogen-free cross-linked compound
Sheath Halogen-free cross-linked, flame-retardant compound Sheath
Colour Black Other colours available on request
|
Core QTY |
Nominal Cross Section Area (mm2) |
Nominal Overall Diameter (mm) |
Nominal Weight (Kg/km) |
|---|---|---|---|
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 1.5 |
Nominal
Overall Diameter (mm) 4.6 |
Nominal
Weight (Kg/km) 36 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 2.5 |
Nominal
Overall Diameter (mm) 5 |
Nominal
Weight (Kg/km) 46 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 4 |
Nominal
Overall Diameter (mm) 5.6 |
Nominal
Weight (Kg/km) 62 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 6 |
Nominal
Overall Diameter (mm) 6.1 |
Nominal
Weight (Kg/km) 82 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 10 |
Nominal
Overall Diameter (mm) 7.1 |
Nominal
Weight (Kg/km) 125 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 16 |
Nominal
Overall Diameter (mm) 8.5 |
Nominal
Weight (Kg/km) 190 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 25 |
Nominal
Overall Diameter (mm) 10.4 |
Nominal
Weight (Kg/km) 285 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 35 |
Nominal
Overall Diameter (mm) 11.5 |
Nominal
Weight (Kg/km) 385 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 50 |
Nominal
Overall Diameter (mm) 13.7 |
Nominal
Weight (Kg/km) 240 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 70 |
Nominal
Overall Diameter (mm) 15.8 |
Nominal
Weight (Kg/km) 740 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 95 |
Nominal
Overall Diameter (mm) 17.3 |
Nominal
Weight (Kg/km) 965 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 120 |
Nominal
Overall Diameter (mm) 19.1 |
Nominal
Weight (Kg/km) 1210 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 150 |
Nominal
Overall Diameter (mm) 21.4 |
Nominal
Weight (Kg/km) 1495 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 185 |
Nominal
Overall Diameter (mm) 24.9 |
Nominal
Weight (Kg/km) 1885 |
|
Core
QTY 1 |
Nominal
Cross Section Area (mm2) 240 |
Nominal
Overall Diameter (mm) 27.3 |
Nominal
Weight (Kg/km) 2395 |
